Curve Tracer Diagnostics

These traces show how different components respond under test. They are useful when checking for opens, shorts, diode junction behavior, SCR behavior, and transistor signatures in and out of circuit.

2.2uF Capacitor at 40mA

2.2uF Capacitor at 40mA

47uF Capacitor at 40mA

47uF Capacitor at 40mA

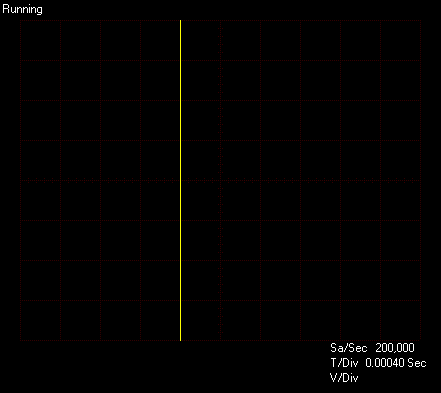

Short Signature

Short Signature

Open Signature

Open Signature

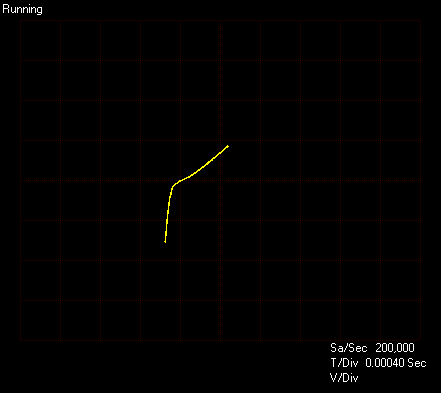

SCR at 400mA

SCR at 400mA

Diode Signature

Diode Signature

Base to Collector at 40mA

Base to Collector at 40mA

Base to Emitter at 40mA

Base to Emitter at 40mA

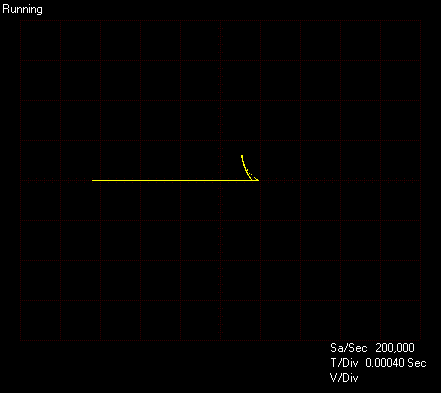

Collector to Emitter at 40mA

Collector to Emitter at 40mA

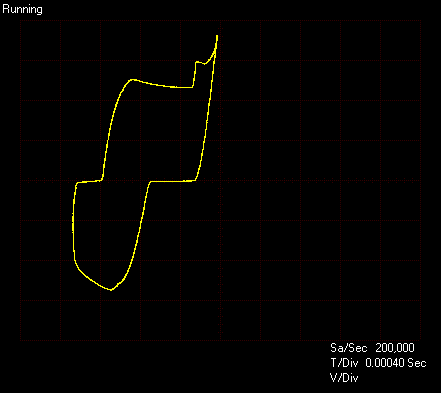

In-Circuit Switching Power Supply Transistor at 400mA

In-Circuit Switching Power Supply Transistor at 400mA
